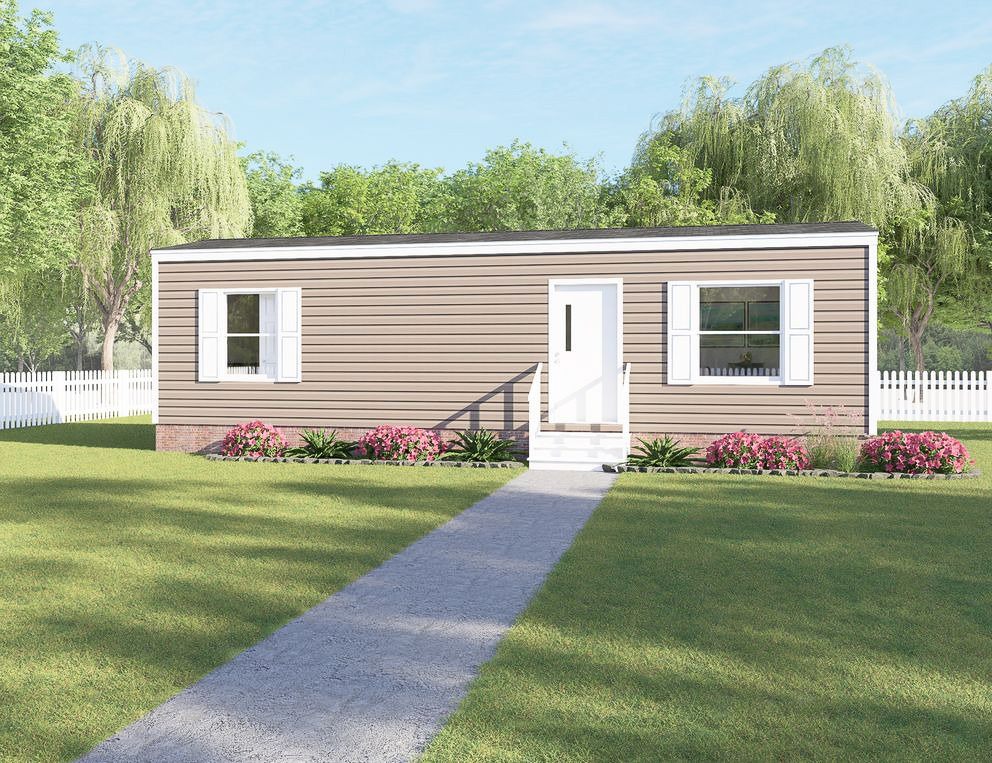

TRU Mini Homes Series

Standard Features

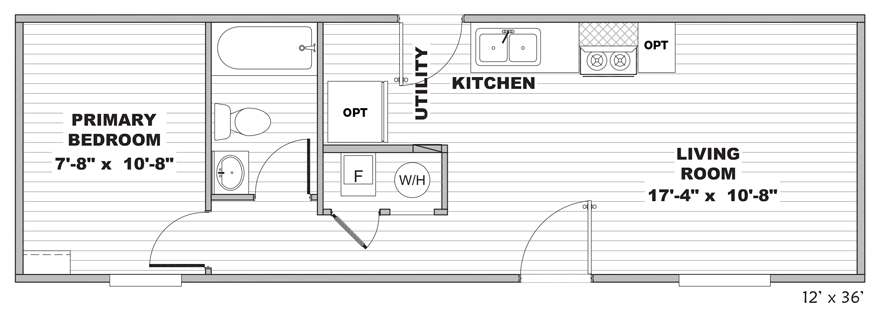

• Shutters front side (Tanana only)
• Smart Panel
• Storm Door
• Kitchen Sink Shelf
• Refrigerator

GENERAL:

• HUD Code
• 20 lb. Roof Load Std., 30 psf optional
• Wind Zone I Standard., Zones II + III optional
• Floor - R-11
• Walls - R-11
• Ceiling - R-30

FRAME:

• I - Beam: 12” or 10” model specific
• Outriggers: 96” spacing
• Crossmembers: 96” spacing
• Header: (Front/Rear) Flush, not recessed
• Axles: Spread (with equalizers) overslung mounted
• Brake Axles: Two, except where more are mandatory by state DOT
• Hitch Beam: 8” Detachable Hitch

FLOOR:

• Joists: 2x6 / 16” O.C.
• Vinyl: Challenger Linoleum by Shaw® throughout home
• Decking: 19/32” 4x8 OSB T&G

EXTERIOR (8’-0” SIDEWALLS):

• Smart Panel Siding: Standard
• Sheathing: Wind Zone I - Thermoply Structural Sheathing
• Exterior Faucet
• Shutters: Front Door Side Windows and Hitchend

WINDOWS AND DOORS:

• Front door: Steel front door with Storm
• Rear door: Steel rear door with Storm
• Interior doors: White 6-Panel Door
• Windows: LUX Thermal Pane Low E Vinyl, size per prints

ROOF / CEILING:

• Timberline Architectural Shingles: 25 year - 3 tab
• Trusses: 24” O.C. spacing
• Sheathing: 7/16” OSB
• Insulation: Blown Fiberglass
• Ceiling: Textured
• Ceiling Slope: Flat Ceiling
• Attic Ventilation: Static & Ridge Vents

PLUMBING:

• Water Heater: 40 gallon Rheem® electric + dual element
• Kitchen Sink: Stainless Steel, double bowl
• Lavatory Sinks: Plastic
• Faucets: Pfister® Metal Faucets
• Master Bath and Bath #2- Tub/Shower Combo - 54” ABS Plastic - Standard
• Whole House Water Shut Off
• Ice Maker Ready
• Dehumidifier Ready

HVAC:

• Heat: Carrier® Electric (gas optional)
• Ductwork: Metal duct wrapped with insulation - Programmable Thermostat

ELECTRICAL:

• Load Center: 200 amp
• (100 amp allowed when gas option ordered – gas range and gas furnace)
• Exterior Receptacles: (1) GFI recept and cover
• Interior Receptacles and Switches: White, self contained
• Communication Plugs Standard
• AC: Conduit
• LED Can Lights
• Wire & Brace for Ceiling Fan in Primary Bed and Living Area

WALLS:

• Exterior Wall Construction: 2x4, 16” O.C. spacing
• Ext. Wall Height Sidewall 8’-0”, Endwall 8’-0”
• Interior Wall Construction: 2x3, 24” O.C. spacing (per print) - Wall Coverings: 3/8” paper on gyp
• Wall Coverage at Closets: 3/8” gyp, raw

INTERIOR FEATURES:

• Lined Cabinets/Centershelf/Base: DuraCraft® (duracraftcabinets.com)
• Box-Built Cabinet Construction
• Countertops (All): Wilsonart® Laminant (TRU Select)
• Rolled Countertops
• Backsplash: None
• Closet Shelving: ClosetMaid® – vinyl wrapped metal
• Utility Shelving: above washer/dryer
• Refrigerator: Frigidaire® 18’ Top Freezer
• Range: Frigidaire® 30” Electric, Coil Top
• Frigidaire® 24” Dishwasher
• Range Hood: 30”, 100 cfm min, vent through sidewall

COLOR SCHEME:

• TRU Select

OPTIONS AVAILABLE:

• Wind Zone II, Wind Zone III
• Ice Dam Protection
• Gas Option: Range and Furnace only (100 or 200 amp)
• 30# roof load, 16” O.C. Trusses
• OSB Wrap
• Garden Tub
• Insulation
• HUD Thermal Zone 3 Standard
• Upgrade Insulation – R22-13-33
